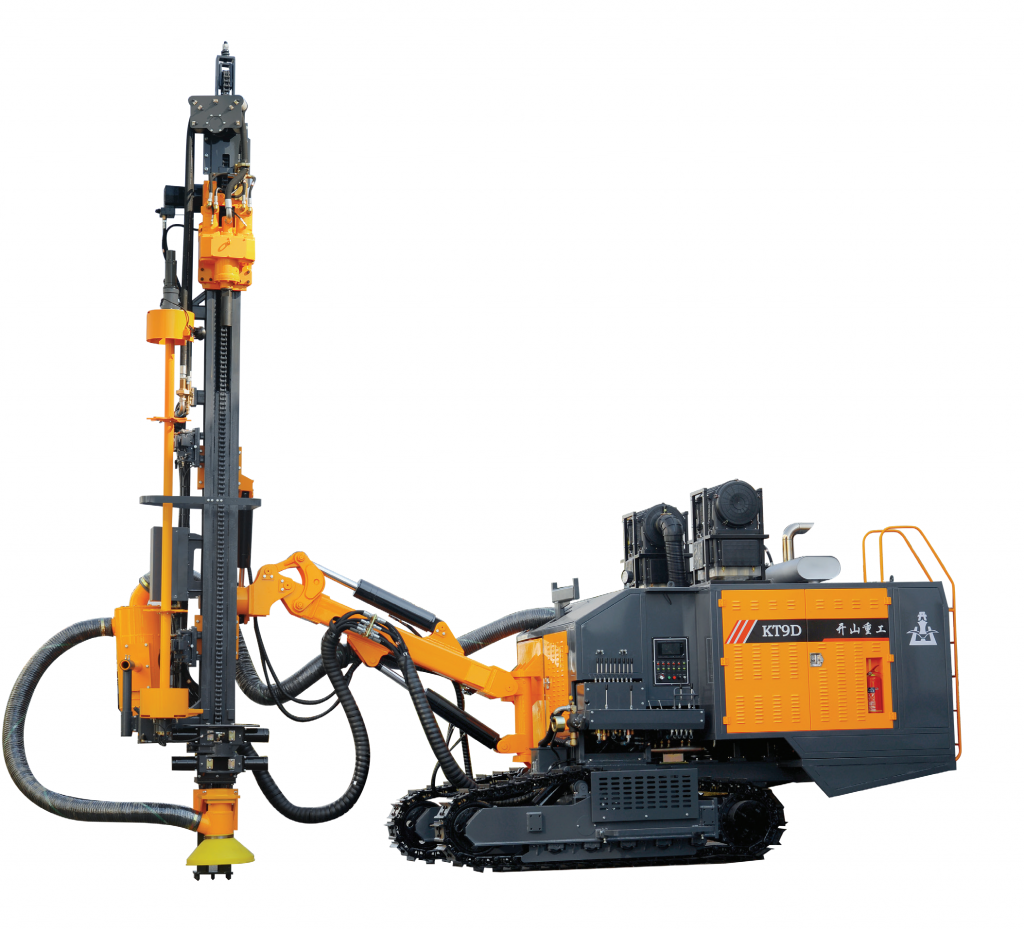

KT9D Integrated Surface DTH Drill Rig

Kaishan is a world-leader in the supply of mining and rock excavation tools and equipment. In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round. Overall, we do everything we can to ensure you get maximum life, productivity and performance from your rock tools, so that you can achieve the lowest total drilling costs. With Kaishan Rock Tools Services, you will never work alone.

Description
Inquiry

The KT9D integrated down the hole drill rig for open use is an advanced drilling device integrating the DTH drill system and screw air compressor system, it is capable of driling vertical, inclined and horizontal holes, mainly used for open-pit mine, stone work blast holes and pre-spliting holes. It is driven by the Yuchai diesel engine and the two-terminal output can dive the screw compression system and hydraulic transmission system.The drill rig is equipped with the automatic rod handling system, drill pipe floating joint module, drill pipe sticking prevention system, hydraulic dry dust collection system, etc. The drill rig is characterized by excellent integrity high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and traveling safety, etc.

Model name: KT9D Integrated DTH Drill Rig

Drill hole size: ᵠ115-165mm(standard configuration 135mm)

Drill Depth(Eco): Max.24m

Drilling rotary speed: 0-100rpm/min

Engine: Yuchai YCK09400-T300(393HP/295KW/1900rpm/min)

Drill rod library:7+1(Drill Rod Auto-connecting unloading system)

Outer Size:8670x2300x3200mm

Weight of complete set: 13000 KG

Equipped air compressor:20m³/min-22bar(2stage)
