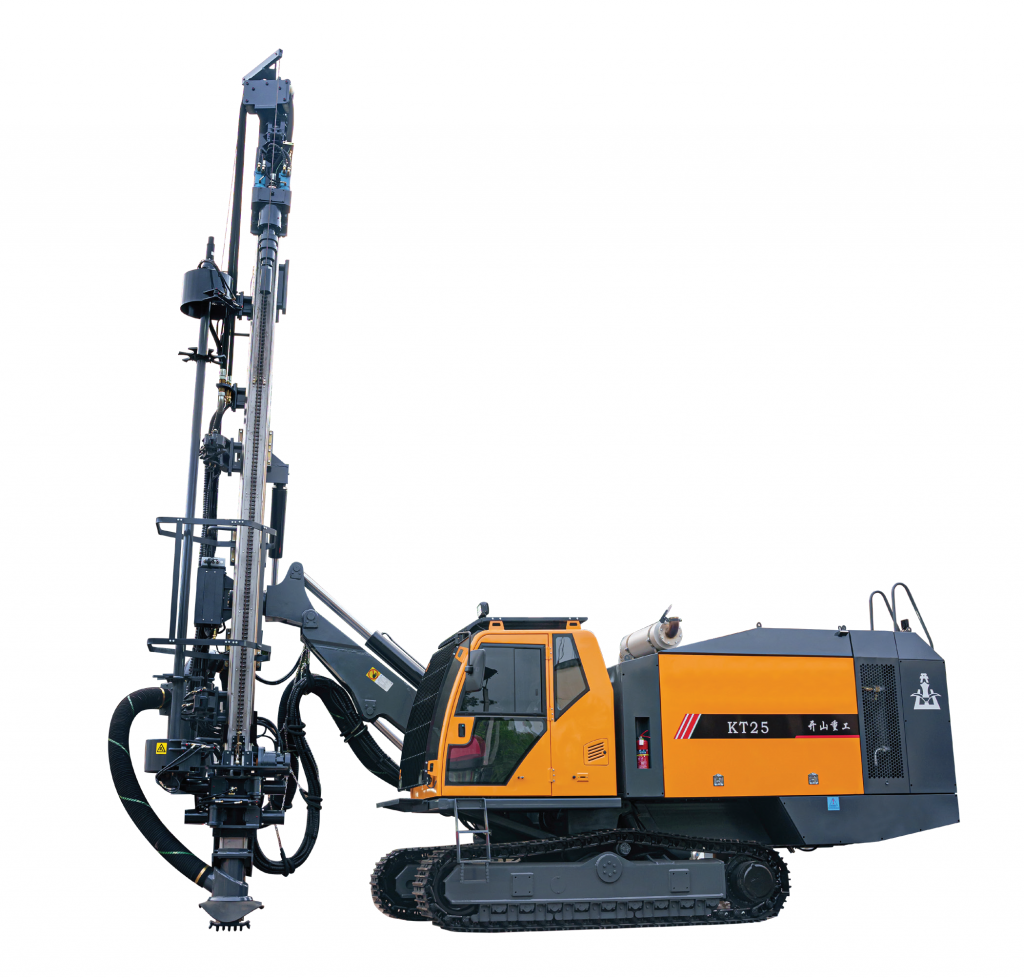

KT25 Integrated Surface DTH Drill Rig

Kaishan is a world-leader in the supply of mining and rock excavation tools and equipment. In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round. Overall, we do everything we can to ensure you get maximum life, productivity and performance from your rock tools, so that you can achieve the lowest total drilling costs. With Kaishan Rock Tools Services, you will never work alone.

Description
Inquiry

The KT25 integrated down the hole drill rig with lower revolving rotation speed of gyrator 100rpm/min, can drill vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-spliting holes.
It is driven by the Cummins diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system.
The drill rig is equipped with the automatic rod handling system, drill pipe floating joint module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, etc. optional drilling angle and depth indication function.
The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-fiendliness, energy conservation, simple operation, flexibility and travelling safety, etc.

Model name: KT25 Integrated DTH Drill Rig

Drill hole size: ᵠ152-203mm(standard configuration 180mm)

Drill Depth(Eco): Max.35m

Drilling rotary speed: 0-150rpm/min

Engine: CUMMINS QSZ13-500(496HP/372KW/2200rpm/min)

Drill rod library: 6+1(Drill Rod Auto-connecting unloading system)

Outer Size:12100x2900x3850mm

Weight of complete set: 29200 KG

Equipped air compressor:31m³/min-25bar
