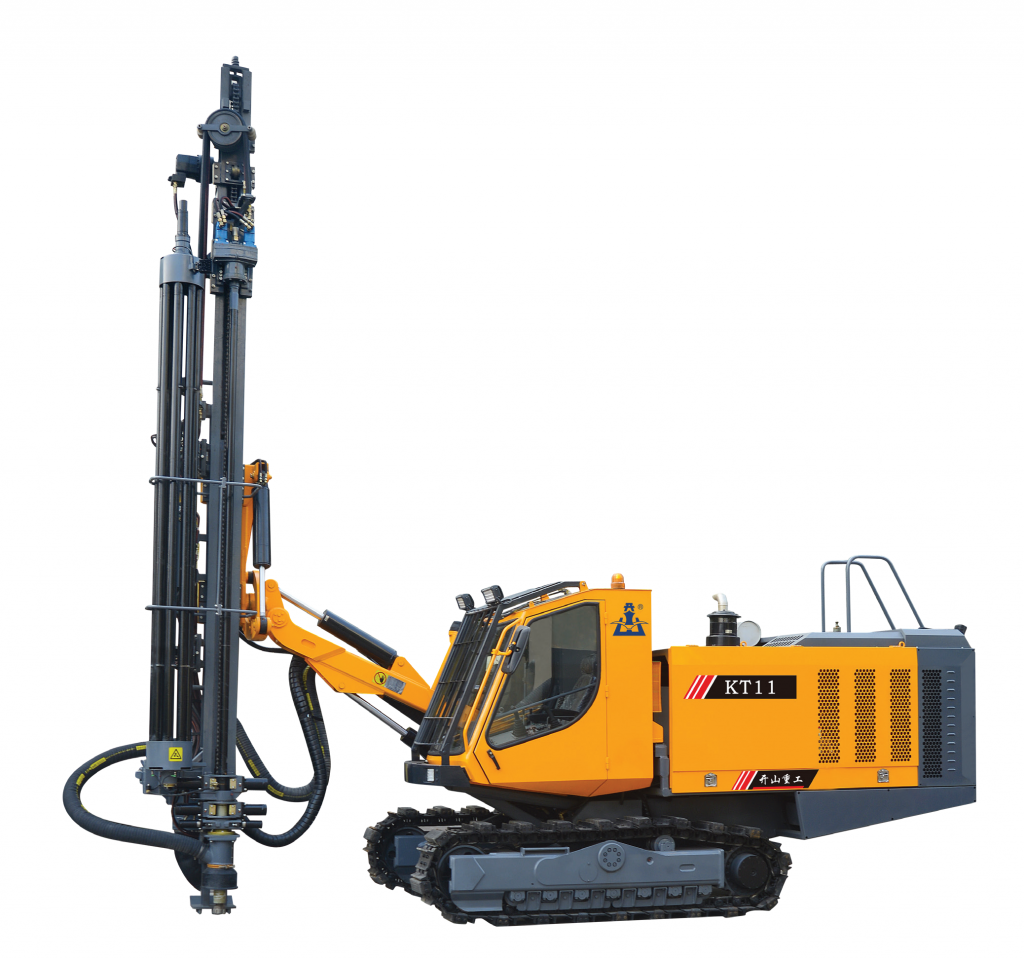

KT11 Integrated Surface DTH Drill Rig

Kaishan is a world-leader in the supply of mining and rock excavation tools and equipment. In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round. Overall, we do everything we can to ensure you get maximum life, productivity and performance from your rock tools, so that you can achieve the lowest total drilling costs. With Kaishan Rock Tools Services, you will never work alone.

Description
Inquiry

Kaishan KT11 integrated down the hole drill rig is the growing-up version of ZT11 model, can drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-spliting holes. It is driven by the Cummins diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system.

The drill rig is equipped with the automatic rod handling system, drilling rod floating slide module,drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, etc. optional drilling angle and depth indication function. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc

Model name: KT11 Integrated DTH Drill Rig

Drill hole size: ᵠ90-140mm(standard configuration 120mm)

Drill Depth(Eco): Max.32m

Drilling rotary speed: 0-120rpm/min

Engine: CUMMINS QSL8.9-C325-30(323HP/242KW/2200rpm/min)

Drill rod library:7+1(Drill Rod Auto-connecting unloading system)

Outer Size:9100x2600x3300/3600mm

Weight of complete set: 17000 KG

Equipped air compressor:18m³/min-20bar
