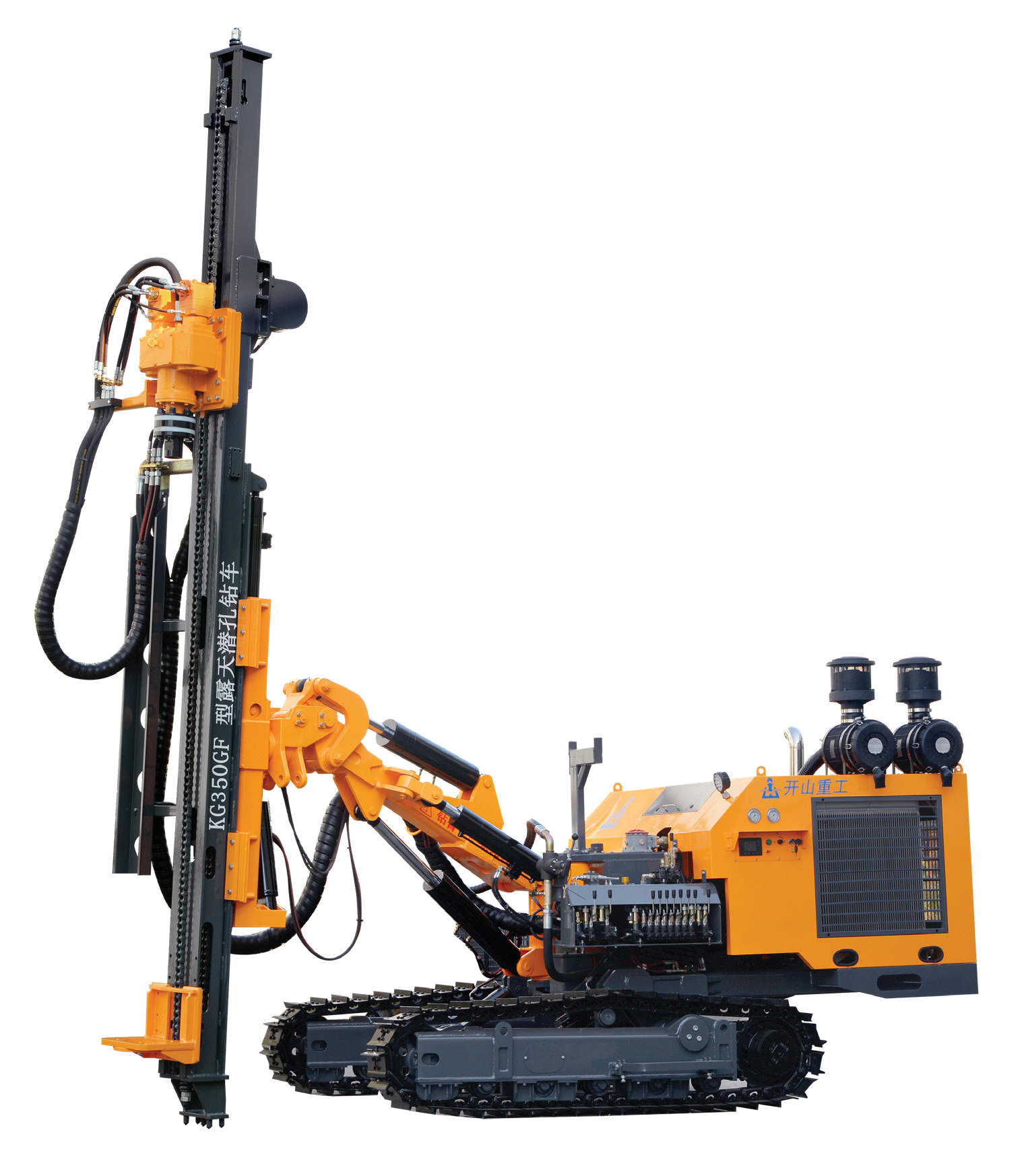

KG350GF photovoltaic drilling rig is specially designed for photovotaic foundation pile holes.It is equipped with 73KW engine, eficient desert-air filter, and the maximum hole diameter can reach 305mm. Hydraulic system adopts high pressure cast iron pump, widened and thickened walking track plate, lifting chain adopts 24A roler chain, box type large section steel guide rail, to ensure that it has enough strength, one time can push 3.5 meters.The gyrator is equipped with lareg torque of hydraulic rotary motors, and adopts high modulus-straight teeth and large reduction ratio transmission to provide the rotary torque of up to 6000Nm for the drilling rig. It is suitable for the construction of foundation pile holes with large aperture. KG350GF photovoltaic drilling rig can been equipped with 1 ton frame winch for feed(optional), convenient for hoisting drill bit and drilling tool, impact device, etc. When used on large slopes, you can choose to use 8-ton frame winch for rig(optional) to ensure suficient traction when using the drill rig.

Model name: KG350GF

Drill hole size: ᵠ115-305mm(standard configuration 254mm)

Drill Depth(Eco): Max.25m

Drilling rotary speed: 0-80 rpm/min

Engine: Yuchai YC4DK100-T304(100HP/2200rpm/min)

Outer Size:6000x2260x2600mm

Weight of complete set: 6900kg

Recommend air compressor:19m³/min-20bar; 19m³/min-21bar; 25m³/min-23bar
