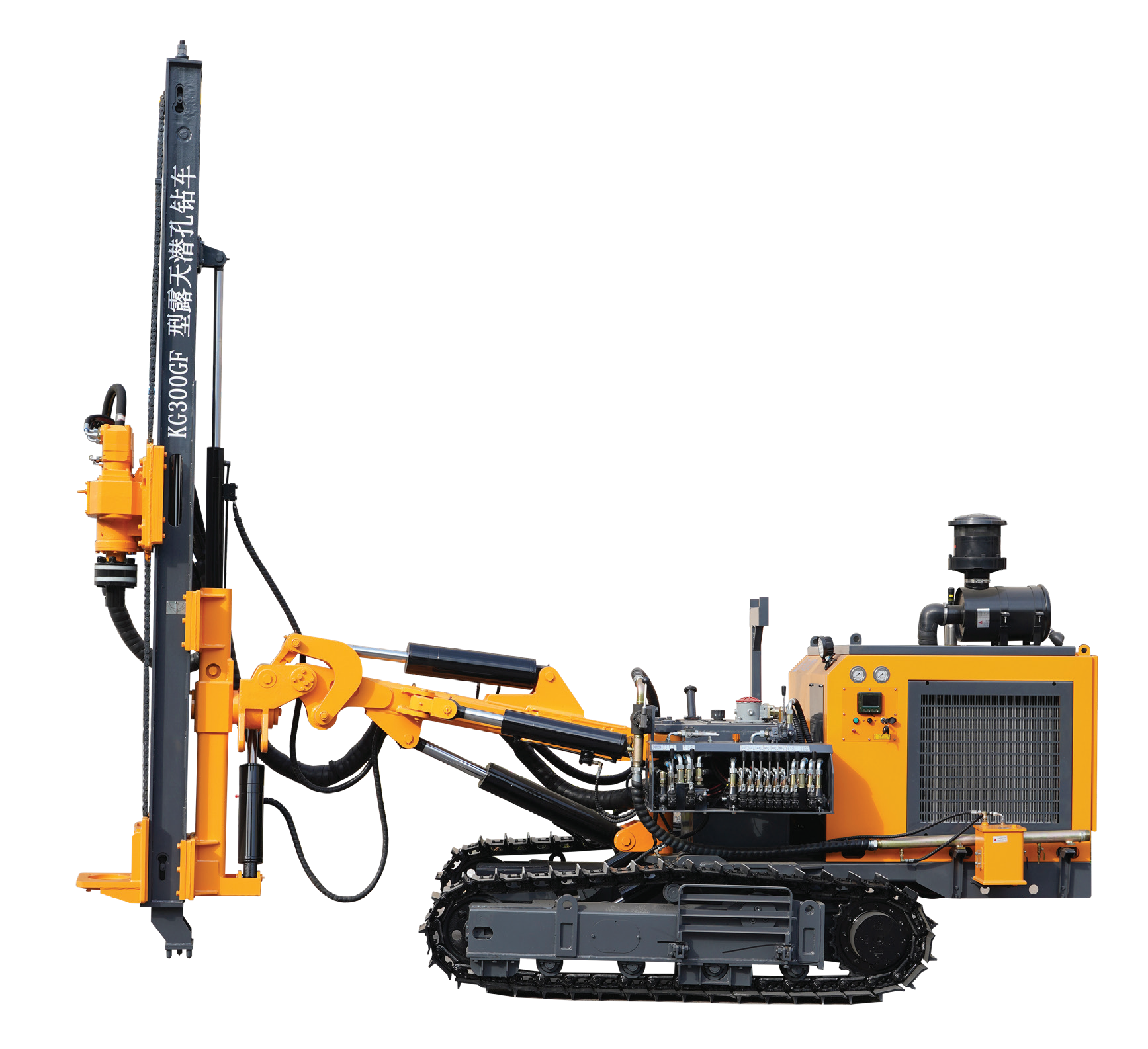

KG300GF photovoltaic drilling rig is a machine specially designed for photovoltaic foundation pile holes. It is equipped with 73KW engine, eficient desert-air fiter, and the maximum hole diameter can reach 305mm. Hydraulic system adopts high pressure iron cast pump, widened and thickened walking track plate, lifting chain adopts 20A roler chain, box type large secion steel guide rail, to ensure that it has enough strength, one time can push 2.6 meters. The gyrator is equipped with large torque of hydraulic rotary motors, and adopts high modulus-straight teeth and large reduction ratio transmission to provide the rotary torque of up to 6000Nm for the diling rig. It is suitable for the construction of foundation pile holes with large aperture. KG300GF photovoltaic drilling rig can be equipped with 1 ton frame winch for feed(optional), convenient for hoisting drill bit and drilling tool, impact device, etc. When used on large slopes, you can choose to use 8-ton frame winch for rig(optional) to ensure suficient traction when using the dill rig.

Model name: KG300GF

Drill hole size: ᵠ115-305mm(standard configuration 203mm)

Drill Depth(Eco): Max.25m

Drilling rotary speed: 0-80 rpm/min

Engine: Yuchai YC4DK100-T304(100HP/2200rpm/min)

Outer Size:6000x2260x2600mm

Weight of complete set: 6000 KG

Recommend air compressor:19m³/min-20bar; 19m³/min-21bar; 25m³/min-23bar
