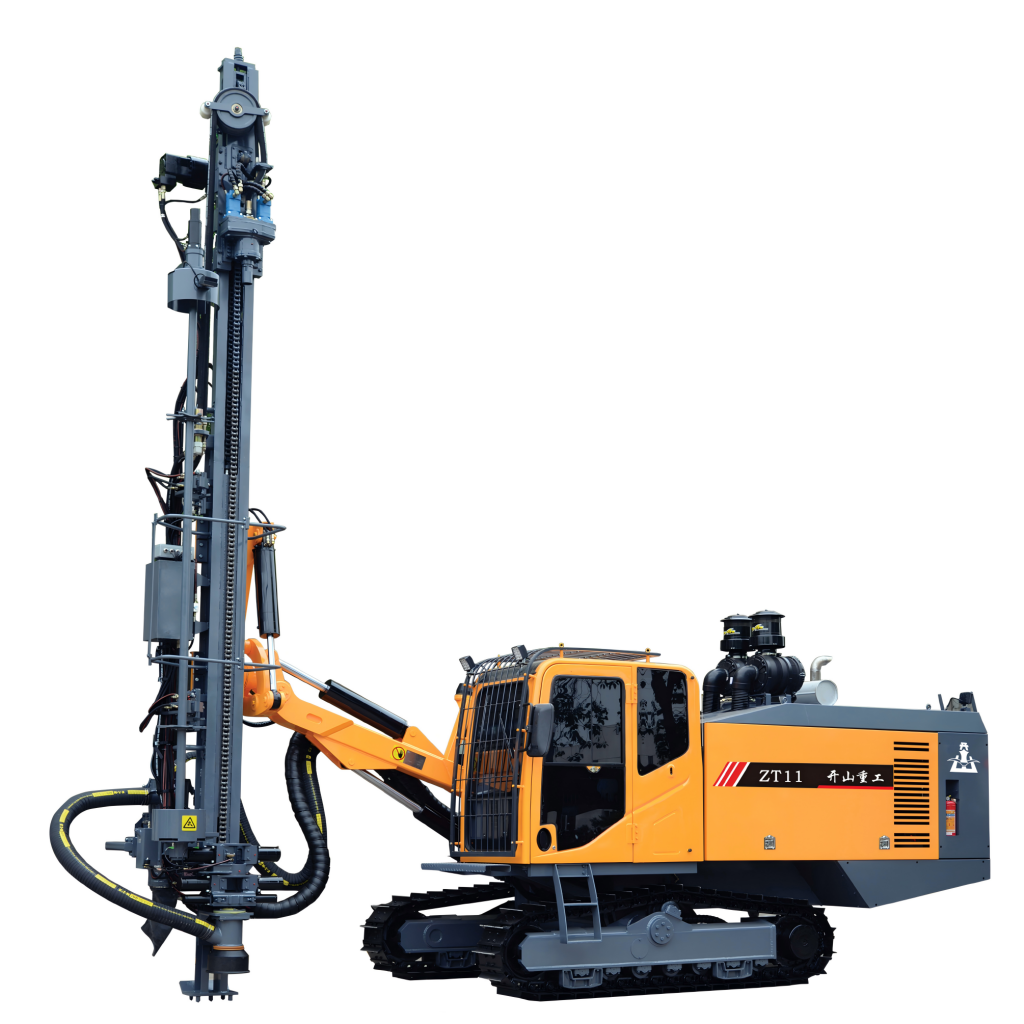

Kaishan ZT11 Integrated Surface DTH Drill Rig

Kaishan is a world-leader in the supply of mining and rock excavation tools and equipment. In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round. Overall, we do everything we can to ensure you get maximum life, productivity and performance from your rock tools, so that you can achieve the lowest total drilling costs. With Kaishan Rock Tools Services, you will never work alone.

Description
Inquiry

Economical Kaishan ZT11 integrated down the hole drill rig for open use can drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-spiting holes. It is driven by the Yuchai diesel engine and the screw compression system and hydraulic transmission system are simultaneously driven by flywheel and back-end PTO port output.

The drill rig is equipped with the automatic rod handling system, drilling rod floating slide module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, etc. optional drilling angle and depth indication function. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.

Model name: ZT11 Integrated DTH Drill Rig

Drill hole size: ᵠ90-130mm(standard configuration 115mm)

Drill Depth(Eco): Max.32m

Drilling rotary speed: 0-173rpm/min

Engine: Yuchai YCA08320-T300(313HP/235KW/2200rpm/min)

Drill rod library:7+1(Drill Rod Auto-connecting unloading system)

Outer Size:9900x2300x3500mm

Weight of complete set: 13000 KG

Equipped air compressor:18m³/min-20bar
