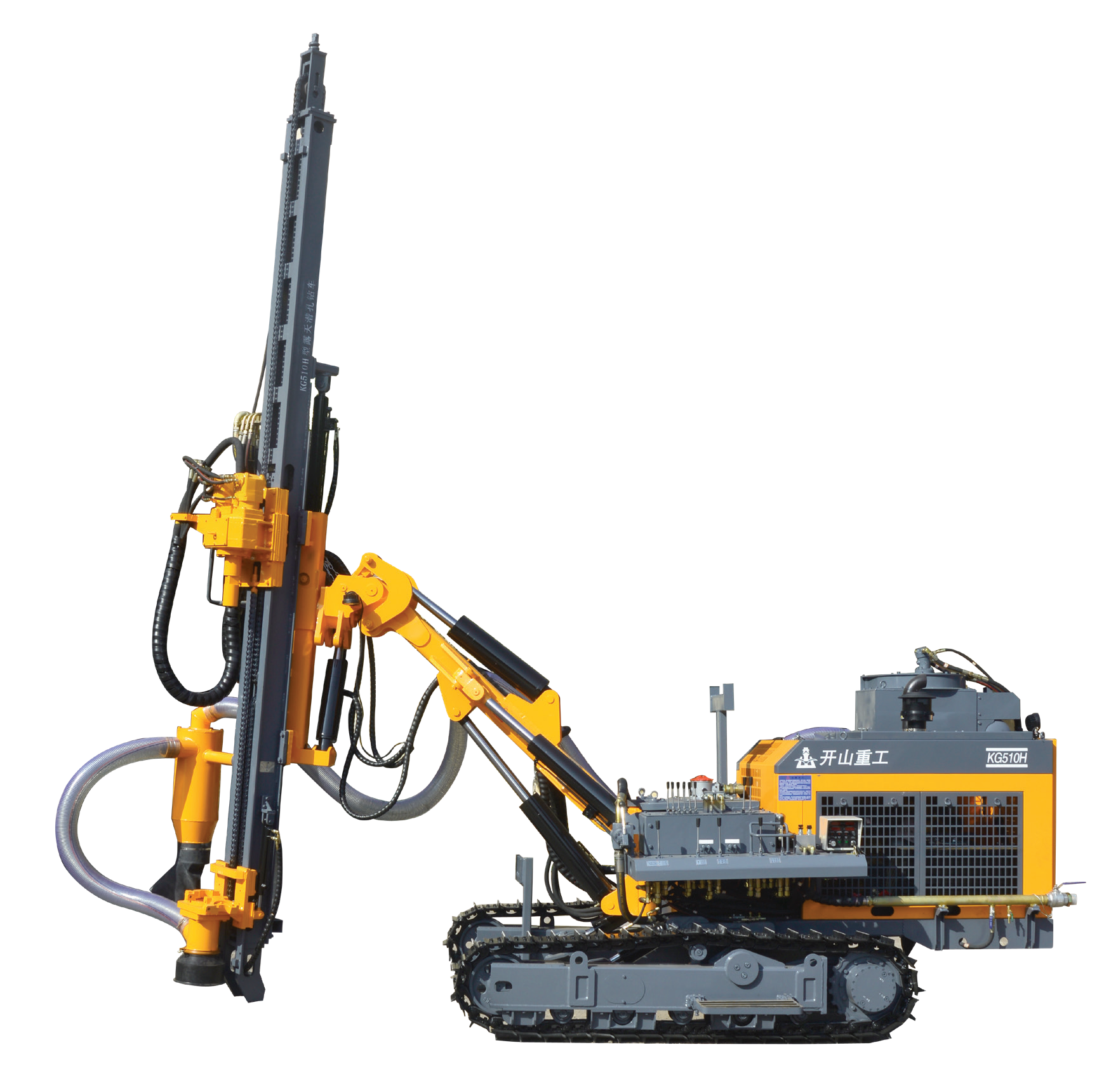

Kaishan KG510 / KG510H DTH Drill Rig for Open Use

Kaishan is a world-leader in the supply of mining and rock excavation tools and equipment. In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round. Overall, we do everything we can to ensure you get maximum life, productivity and performance from your rock tools, so that you can achieve the lowest total drilling costs. With Kaishan Rock Tools Services, you will never work alone.

Description
Inquiry

Kaishan Separated DTH Surface Drill Rig is used for open pit, mine, quarry, construction etc. And this mine drilling rig is with good integrity, environmental protection and energy saving,high degree of automation, drilling effect is good, convenient operation,flexible, driving safety, etc.

Model name: KG510/ KG510H

Drill hole size: ᵠ105-152mm

Drill Depth(Eco): Max.25m

Drilling rotary speed: 0-110 rpm/min

Engine: Yuchai YC4DK80-T302 （80HP)

Outer Size: 6800x2200x2850 mm/ 6800x2450x2850 mm(include dust collector)

Weight of complete set: 6500 KG/ 7000KG

Recommend air compressor:18m³/min-17bar; 18m³/min-20bar; 20m³/min-20bar
