Kaishan KG430 /KG430H DTH Rig for Open Use

Kaishan is a world-leader in the supply of mining and rock excavation tools and equipment. In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round. Overall, we do everything we can to ensure you get maximum life, productivity and performance from your rock tools, so that you can achieve the lowest total drilling costs. With Kaishan Rock Tools Services, you will never work alone.

Description
Inquiry

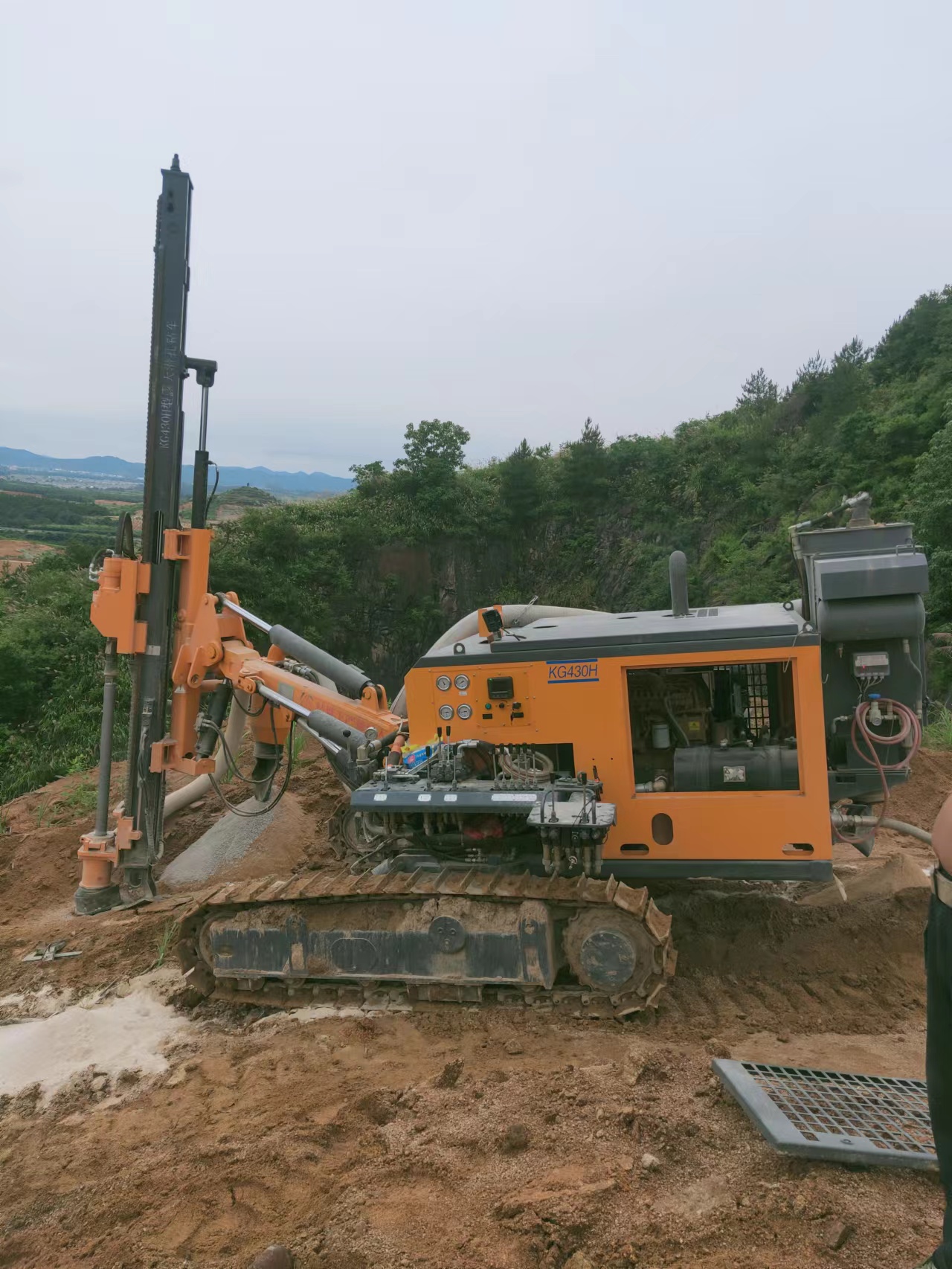

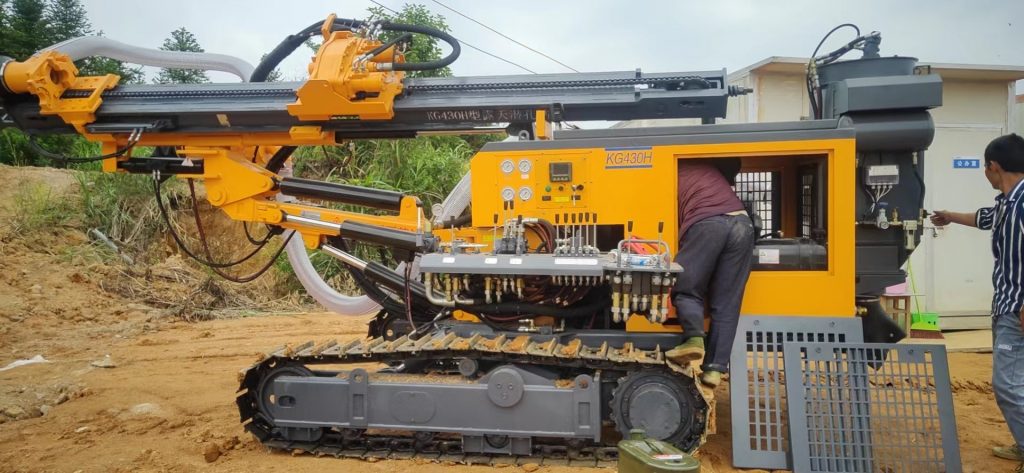

Kaishan Separated DTH Surface Drill Rig is used for open pit, mine, quarry, construction etc. And this mine drilling rig is with good integrity, environmental protection and energy saving,high degree of automation, drilling effect is good, convenient operation,flexible, driving safety, etc.

Model name: KG430/ KG430H

Drill hole size: ᵠ90-152mm

Drill Depth(Eco): Max.25m

Drilling rotary speed: 0-90 rpm/min

Engine Brand: Yuchai YC4DK80-T302（KG430） / Yuchai YC4DK100-T304(KG430H)

Engine power: 80HP(KG430) / 100HP(KG430H)

Outer Size: 6300x2250x2700 mm/ 6300x2400x2700 mm(include dust collector)

Weight of complete set: 5250 KG/ 5700KG

Recommend air compressor:15m³/min-13bar; 16m³/min-13bar
