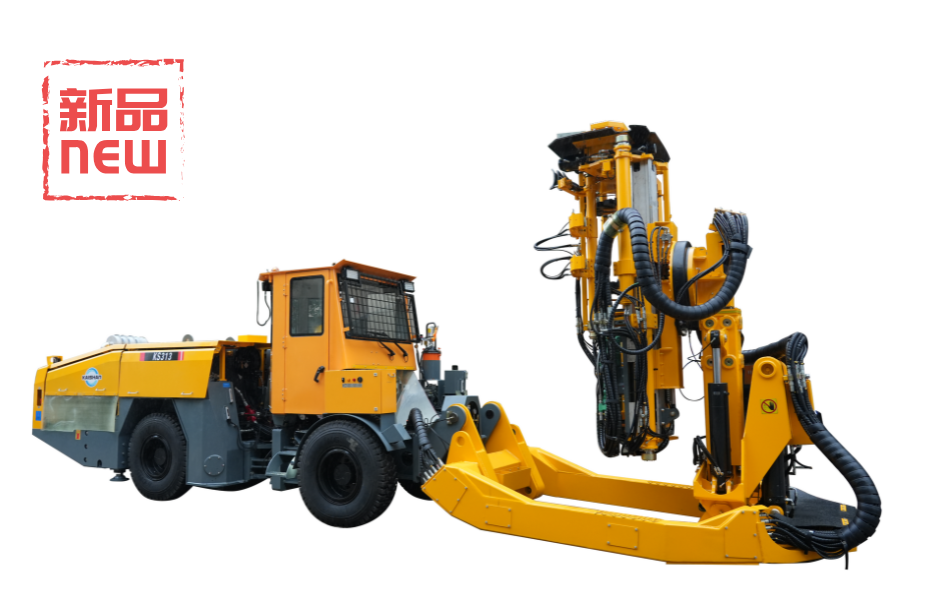

KS313 hydraulic mining drilling vehicle is mainly used for deep hole mining drilling and blasting holes, and can also be used for anchor cable support (foundation pit support) drilling. The tunnel height is 3.5-5 m and the width is 3.5-5m. The propulsion beam can be turned 360°, and with the swing mechanism and telescopic arm seat, it can achieve 360°drilling and parallel drilling within a range of 3m, which can meet various mining drilling requirements.

Product Feature&Advantage

1. The drill rod warehouse can accommodate 28 drill rods for automatic rod replacement, with a maximum drilling depth of 42 meters.

2. The front and rear hydraulic top supports of the propulsion beam ensure the stability of the drilling process; with a drill support cylinder, the drilling straightness is maintained to the maximum extent

3. The high-frequency impact hydraulic rock drill uses a stepped piston to optimize the transmission efficiency of the shock wave, increase the drilling speed, reduce the consumption of drill tools, and improve the integrity of the equipment.

4. The drilling vehicle is reasonably arranged to ensure that the operator has a good field of vision; the spacious working space is equipped with automatic functions, which helps the driver concentrate on completing the drilling operation safely, quickly and accurately.

5. The drilling vehicle cab is equipped with air conditioning to ensure that the operator can work comfortably in hot and cold environments.

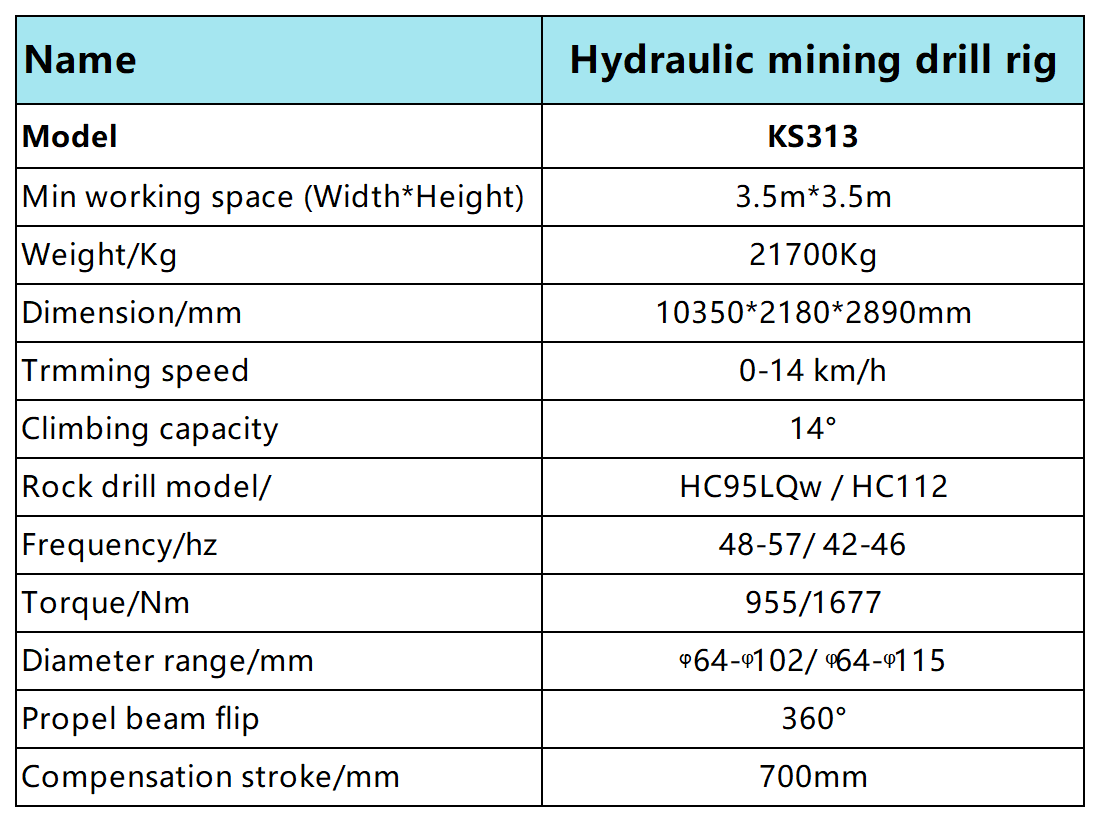

Product Parameter
